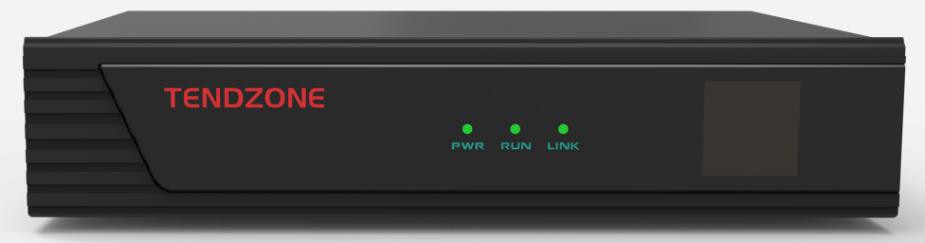

Amber NV880 Overview
Amber NV880 is a distributed network audio input and output node, providing 8 channels analog audio input and 8 channels analog output. It supports Tendzone Vailink protocol with 8x8 channels. It is managed and set by the platform software as part of an integrated system. This device is usually placed near the front-end multimedia source or the back-end power amplifier, as a bridge for signal connection.

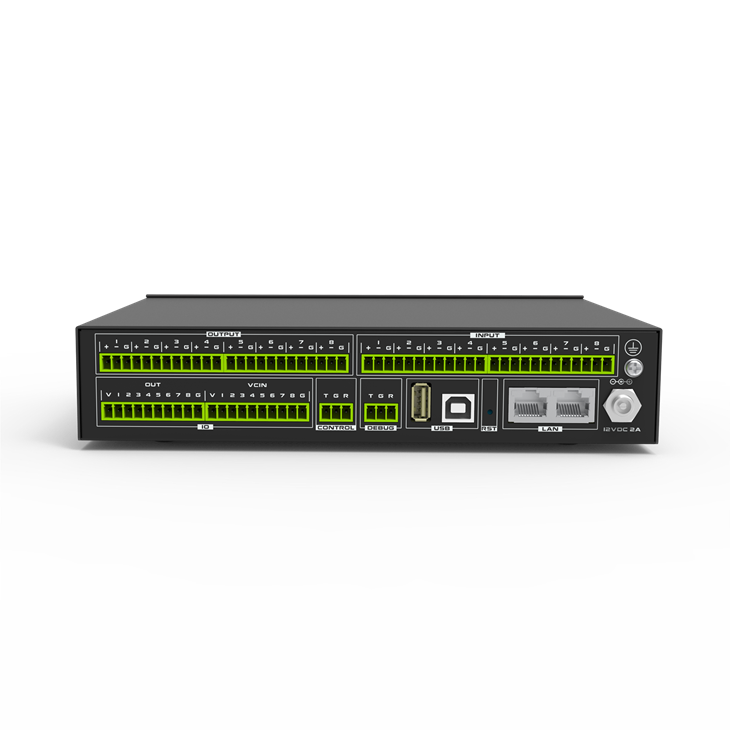

- 8 balanced microphone/line inputs, support 48V phantom power, and use 3.81 phoenix terminal block
- 8 channel outputs, using 3.81 phoenix terminal block
- 8 x 8 Vailink network audio transmission channels, realizing network audio transmission on standard Ethernet
- Two 1000M Ethernet interfaces support uninterrupted redundant backup of network audio transmission
लोकप्रिय टैग: 8x8 vailink i/o interface, China 8x8 vailink i/o interface manufacturers, suppliers, factory
|
|
|
|
|
20Hz-20kHz (±0.5dB) |
|
|
48kHz,24bit |
|
|
>103dB |
|
|
Less than or equal to 0.006% |
|
|
<-90dBu@ 0dB Gain |
|
|
>110dB |
|
|
|
|
|
3.81 mm terminal blocks |
|
|
8in8out |
|
|
8in8out |
|
|
DC 48 |
|
|
0dBu, -10dBu, -20dBu, -30dBu, -40dBu |
|
|
10KΩ balance |
|
|
200Ω balance |
|
|
{{0}} dBu @ 0dB Gain |
|
|
+18 dBu |
|
|
|
|
|
DC 12V, <2A |
|
|
10W |
|
|
0 degree -40 degree working |
|
|
10%~90% no condensation |
|
|
220mm*191mm*44.5mm |
|
|
0.46Kg |
